A neural model for compass neurons

Fig. 7:

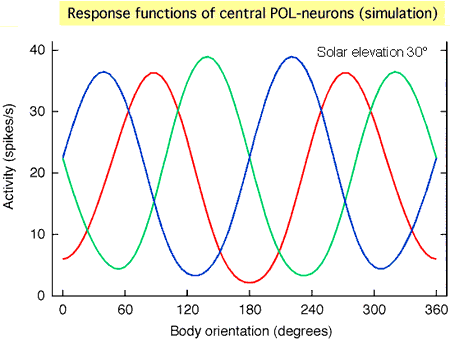

Response functions of zenith-centred, central brain POL-neurons (computer simulation) for the clear sky. The spike frequencies (ordinate) of the three e-vector types of POL-neuron are shown for different body orientations (abscissa) with respect to the polarization pattern.
